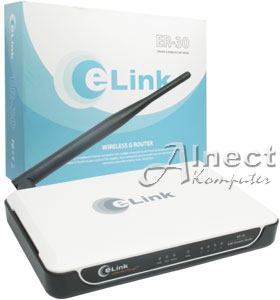

54M Wireless-G LAN Router eLink ER-30

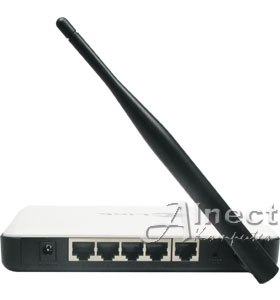

| PC Connectivity | 4x 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX) |
| Wifi Signal Capability | Standards IEEE 802.11g, IEEE 802.11b |
| Work Mode | AP Router, Bridge mode (point-to-point/point to Multi-point) |
| Frequency Range | 2.4 ~ 2.4835GHz |
| Wireless Security | SSID Enable/Disable, MAC Address Filter, 64/128/152-bit WEP, WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) |
| Antenna Type | 3dBi Detachable Omni Directional Antenna (Reverse SMA Connector) |
| Wireless Transmit Power | 19dBm |
| Receiver Sensitivity | 54M(-68dBm@10% PER) 11M(-85dBm@8% PER) 6M(-88dBm@10% PER) 1M(-90dBm@8% PER) 256K(-105dBm@8% PER) |
| Operating Temperature | 0°C ~ 40°C (32℉ ~ 104℉) |
| Operating Humidity | 10% ~ 90% RH non condensation |
| Storage Temperature | -40°C ~ 70°C (-40℉ ~ 158℉) |
| Storage Humidity | 5% ~ 95% RH non condensation |
| Port Setting | Outdoor (830 meter) Indoor (200 meter) Depend on the Environment Around |
| Input Voltage Range | Localized to Country of Sale |
| Output Voltage Range | 9 Volt AC / 0.6A Linear PSU |
| Support Operating System | Windows 98SE/ME/2000/XP/Vista |
| Dimension (WHD) | 164(W) x 31.5(D) x 107.9(H) mm |
| Weight | 213 gram (Router), 73 gram (AC Adaptor) |
| Alnect Care Warranty | 30 Hari |
| Standard Warranty | 90 Hari (3 Bulan) |
| Manufacturer website | http://www.elink.co.id/ |
